2 LASERS · 300+ MATERIALS · ONE COMPACT SYSTEM 2W IR + 10W BLUE · 300+ MATERIALS

XT LASER Dual-Laser Portable Engraving Machine Dual-Laser Portable Engraving Machine

A 2W 1064 nm infrared laser and a 10W 455 nm blue‑diode laser in one enclosed high‑speed system—built for precise marking on compatible metals and plastics, creative engraving, and cutting selected thin non‑metal materials.
2W · 1064 nm Infrared Laser
10W · 455 nm Blue-Diode Laser
Up to 5,000 mm/s Maximum Speed
0.001 mm Positioning Accuracy
Choose Your Package Talk to a Laser Specialist

Dual-laser capability

Two wavelengths. More materials.

Switch between 2W infrared marking for compatible metals and plastics, and 10W blue-diode engraving and thin-material cutting for wood, leather, dark acrylic, paper, and cardboard.
2W · 1064 nm Infrared
10W · 455 nm Blue-Diode

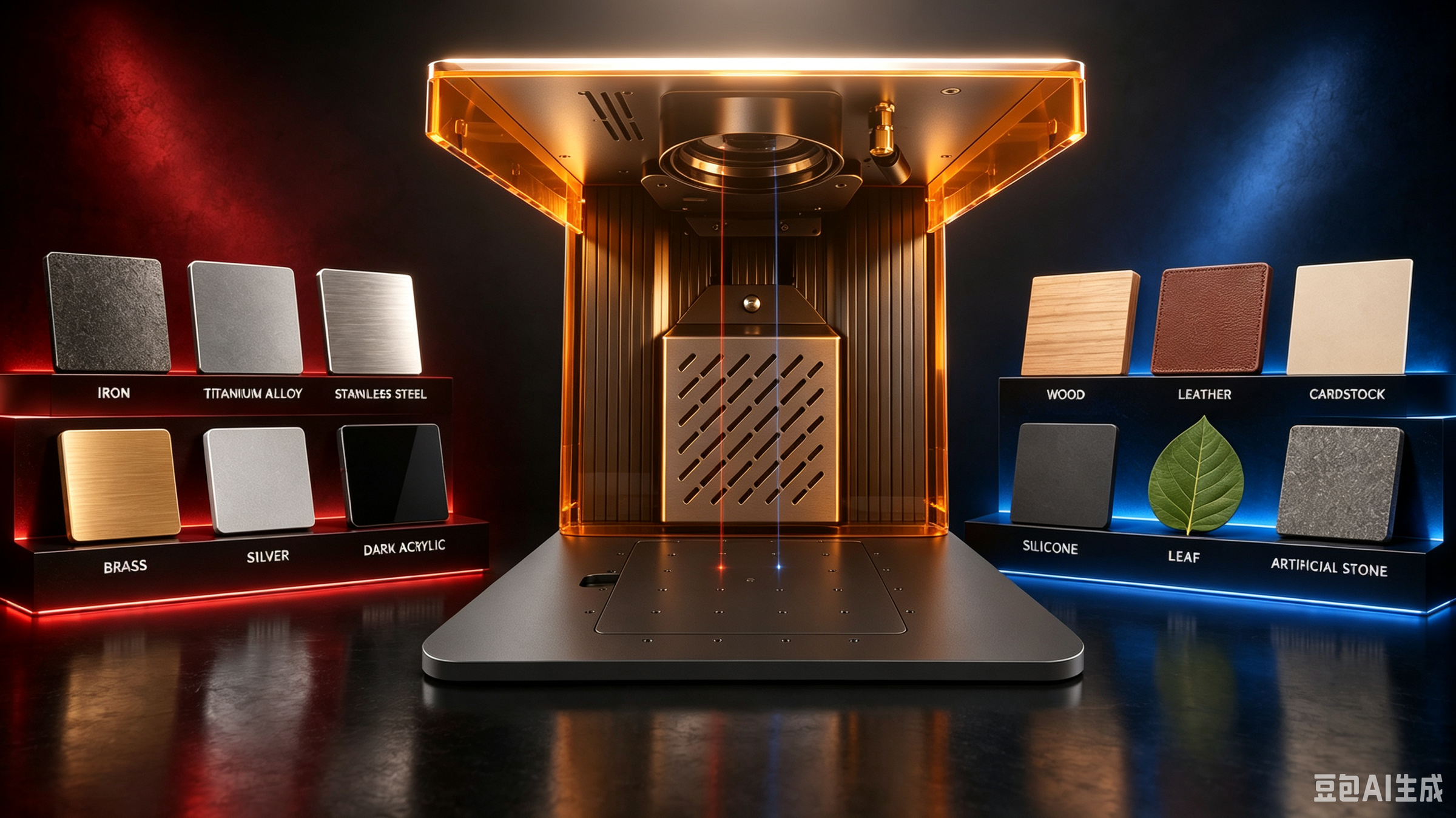

Two wavelengths.

Infrared Source

2W · 1064 nm Infrared

Precision marking for compatible metals, plastics, coated surfaces, ceramics, product tags, and detailed parts.

Blue-Diode Source

10W · 455 nm Blue-Diode

Creative engraving and selected thin-material cutting for wood, leather, dark acrylic, paper, cardboard, and craft materials.

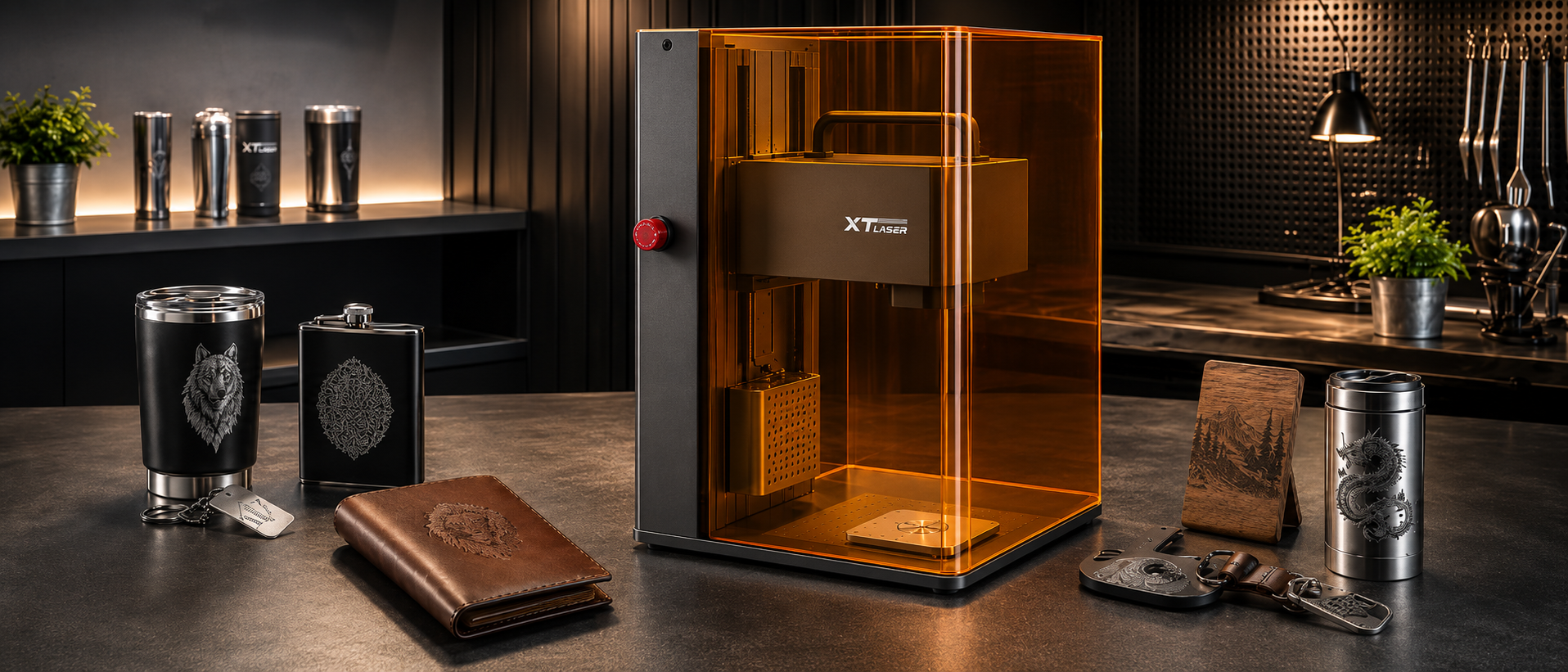

High-Speed Precision

Fine detail. Clean results.

A high-speed galvanometer system, automatic focusing, and a compact engraving field help produce clean text, detailed graphics, and consistent small-batch work.
Precision Engraving
Fine detail. Clean results.
5,000 mm/s Maximum working speed
106 × 106 mm Maximum engraving field
Auto focus Adjustable lifting setup
Actual engraving results depend on material, focus, artwork, and parameter settings.

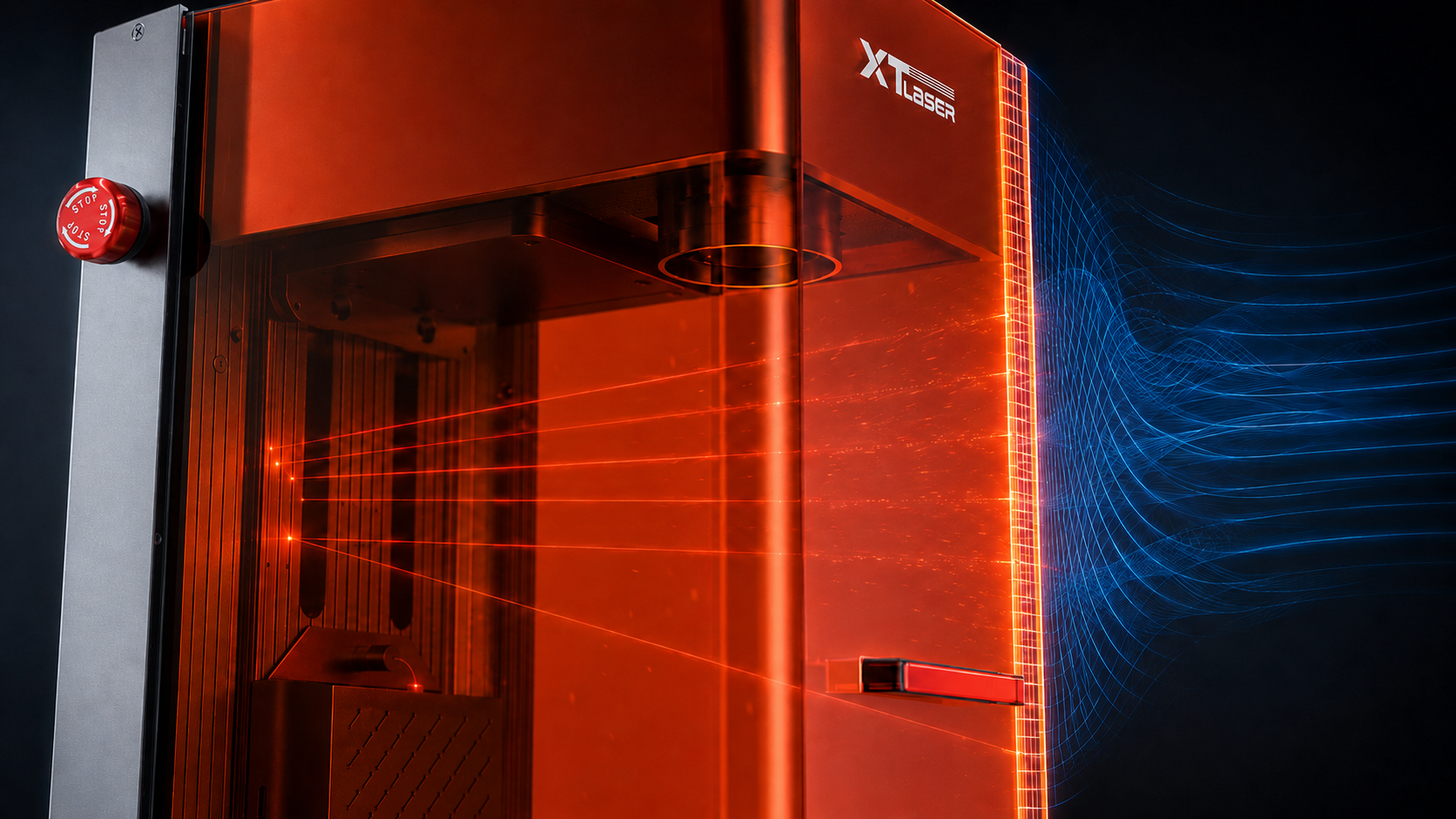

Protection designed into the workspace.

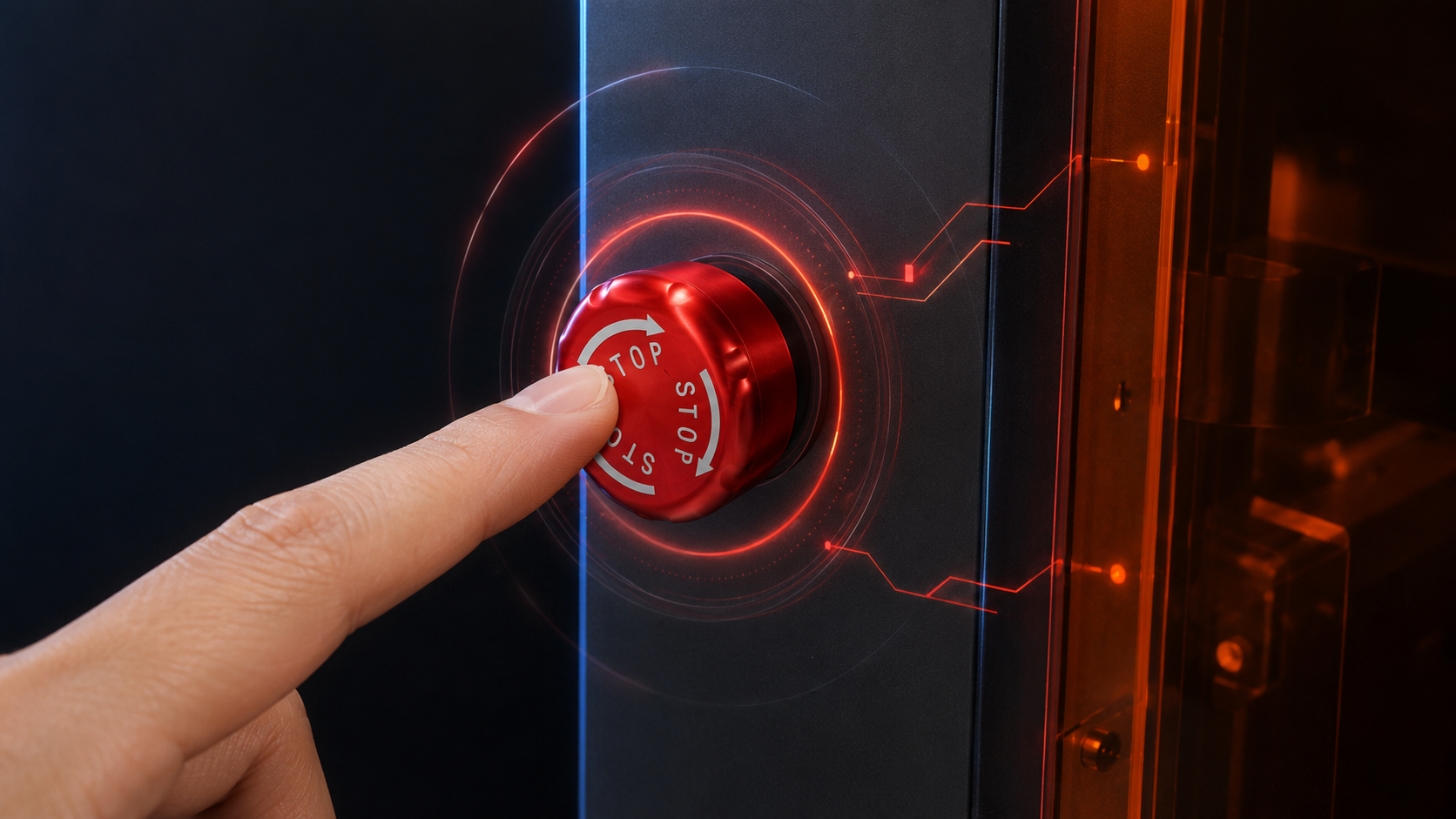

A compact enclosed structure, clear operating controls, smoke extraction, and emergency-stop access help create a cleaner and more controlled engraving workflow.

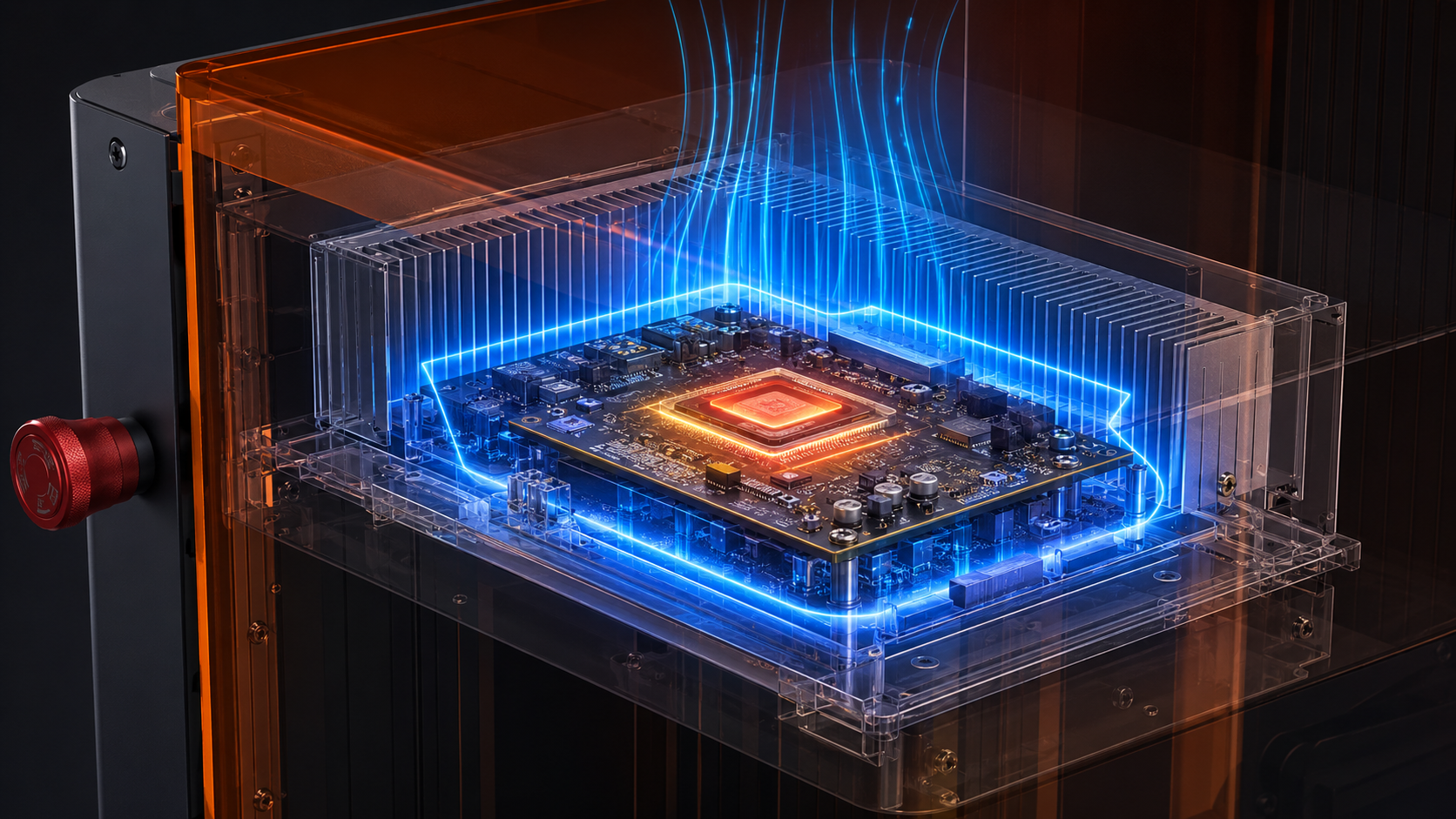

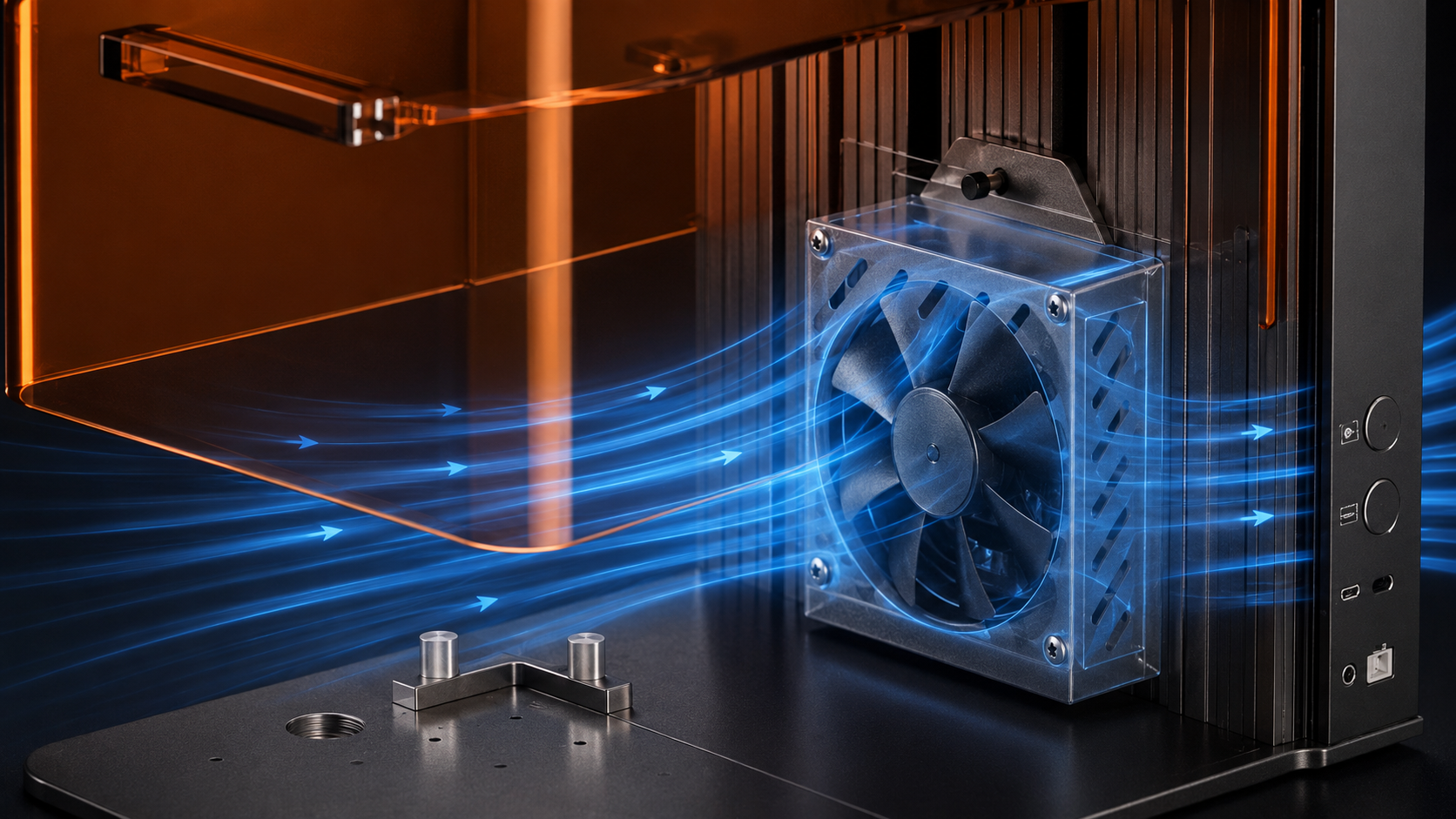

Integrated Cooling Fan

Material Compatibility

Match the laser to the material.

Use the 2W 1064 nm infrared source for compatible metals and plastics. Choose the 10W 455 nm blue-diode source for wood, leather, paper, cardboard, dark acrylic, and selected thin-material cutting.

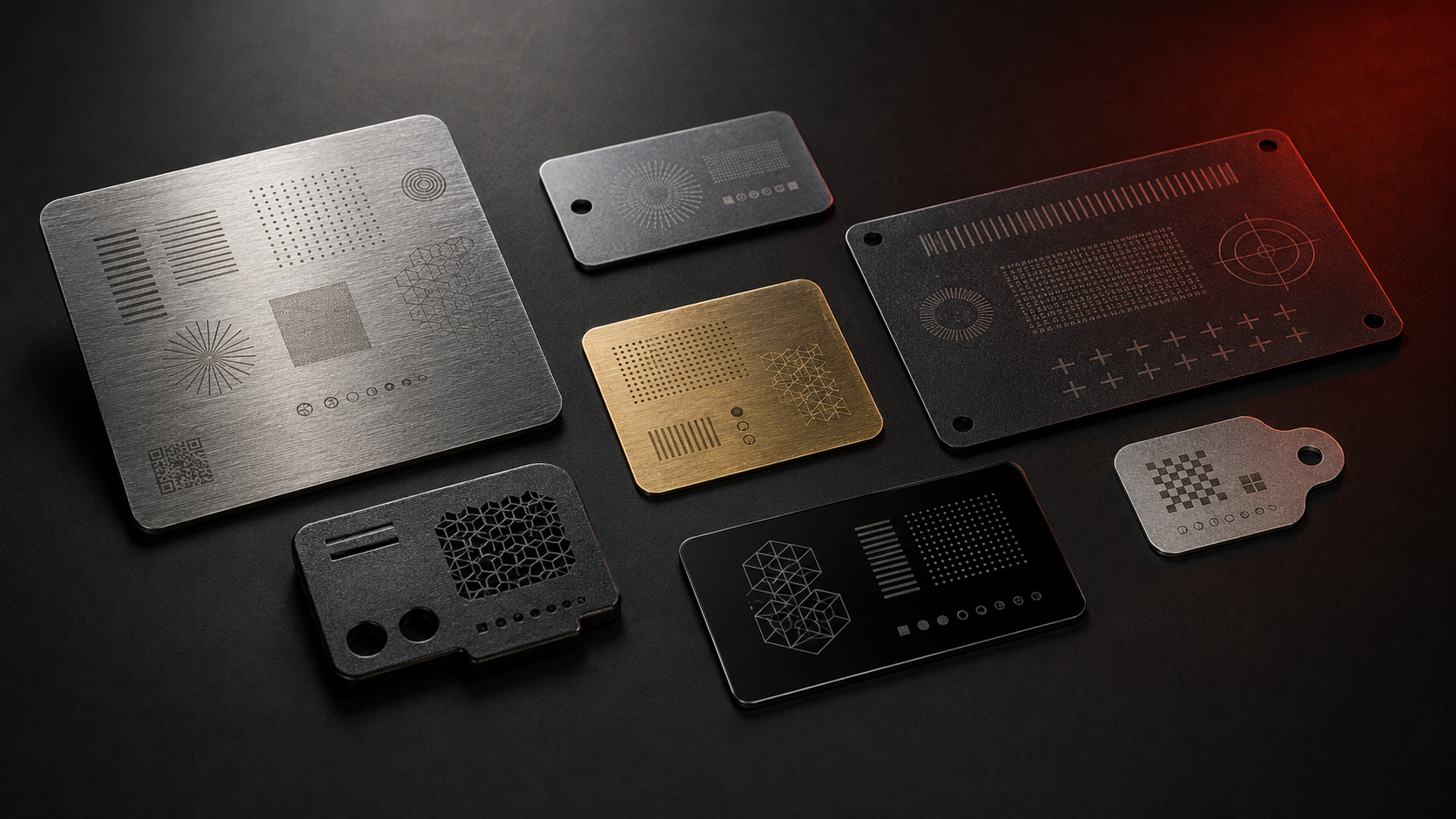

Precision marking for compatible metals and plastics.

2W Infrared Source

Precision marking for compatible metals and plastics.

Use the 1064 nm infrared source for product identification, logos, serial information, fine graphics, and personalized metal items.
01
Stainless steel Logos · product IDs · personalized marks
02
Aluminum Tags · coated parts · compact identification
03
Coated metal High-contrast graphics · labels · product marks
04
Selected plastics Fine text · symbols · compatible product parts
Material response varies by alloy, coating, surface finish, focus, and parameter settings.

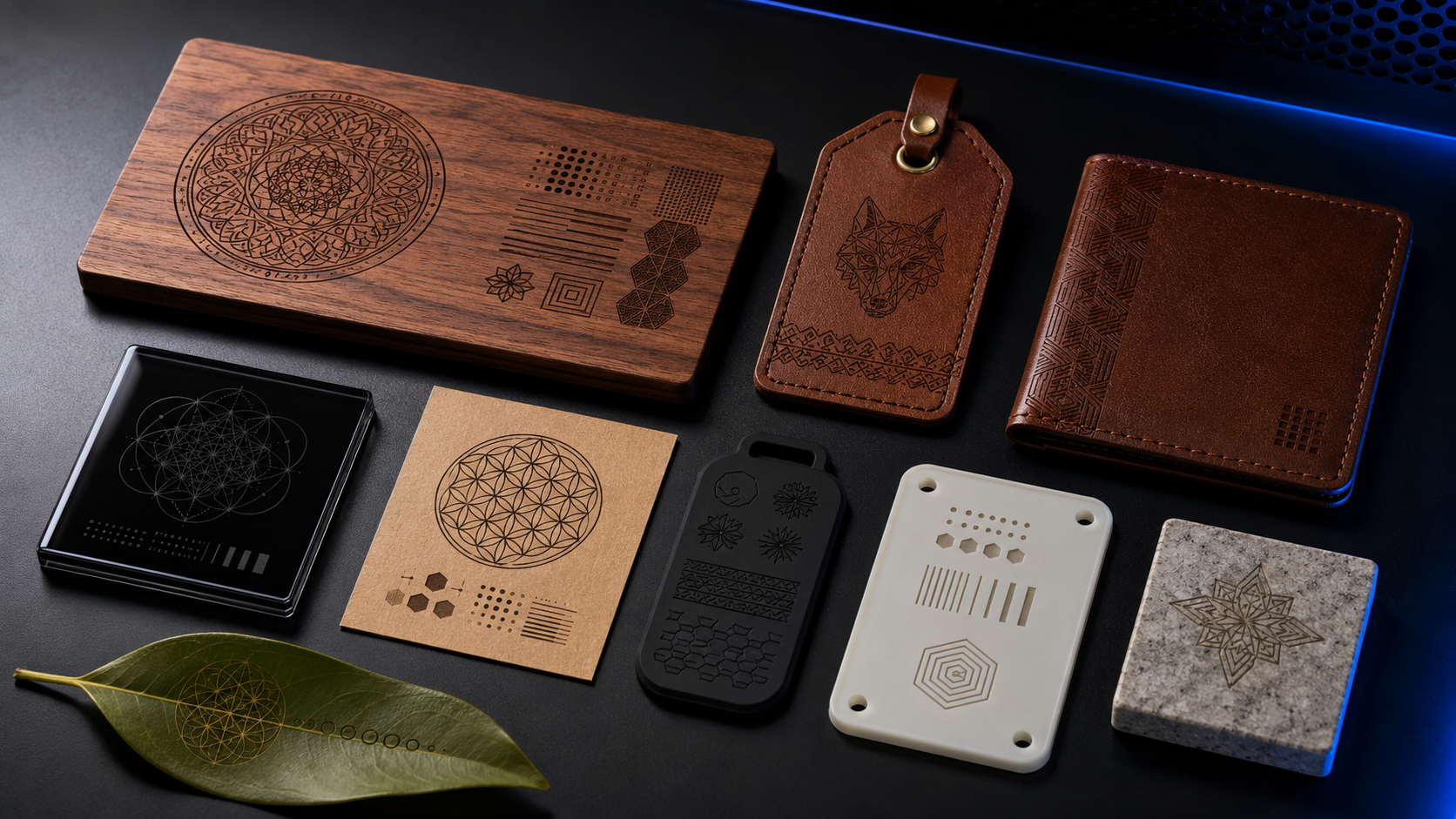

Engraving and cutting for non-metal materials.

10W Blue-Diode Source

Engraving and cutting for non-metal materials.

Use the 455 nm blue-diode source for personalized gifts, packaging, signs, leather goods, wood projects, and selected thin-material cutting.
01
Wood Signs · gifts · décor · creative projects
02
Leather Wallets · tags · accessories · customization
03
Paper & cardboard Packaging · invitations · prototypes
04
Dark / Opaque Acrylic Signs · display pieces · decorative products
Always confirm material compatibility and test settings before production.

Applications & Workflows

Built for custom orders and small-batch production.

Use the 2W infrared source for compatible metals and plastics, then switch to the 10W blue-diode source for wood, leather, dark acrylic, paper, and selected thin-material projects.
Personalized gifts and custom orders
01

Personalized gifts and custom orders

Create names, logos, and detailed artwork on compatible metal, plastic, wood, leather, and dark acrylic items.

On-demand retail personalization
02

On-demand retail personalization

Add names, dates, and branded graphics for gift shops, studios, events, pop-ups, and local retail services.

Product development and prototyping
03

Product development and prototyping

Test artwork, identify parts, and prepare sample products before approving a production run.

Repeatable small-batch orders
04

Repeatable small-batch orders

Repeat approved designs across customer orders, branded merchandise, and product-identification jobs.

From one custom piece to the next production run. A compact dual-laser platform for makers, gift businesses, product developers, and small workshops.
Makers Gift shops Studios Small workshops

Accessory System

Configure the machine for the job.

Use G1 for longer layouts, G3 Mini or G5 for cylindrical workpieces, and add H2 external filtration when the production environment requires it.

Core machine
XT LASER dual-laser portable engraving machine

One engraver. Four purpose-built accessories.

Extend positioning, add controlled rotation, or connect external filtration without changing the core engraver.

G1 adds positioning travel for longer workpieces and multi-item layouts; it does not change the machine's single 106 × 106 mm marking field. H2 is an optional external filtration accessory, separate from the machine's built-in smoke-extraction structure.

Compare package options

Device Compatibility

Work from the device you already use.

Use supported computer and mobile workflows through USB, Wi-Fi, or IP connections, with offline engraving support for compatible jobs.

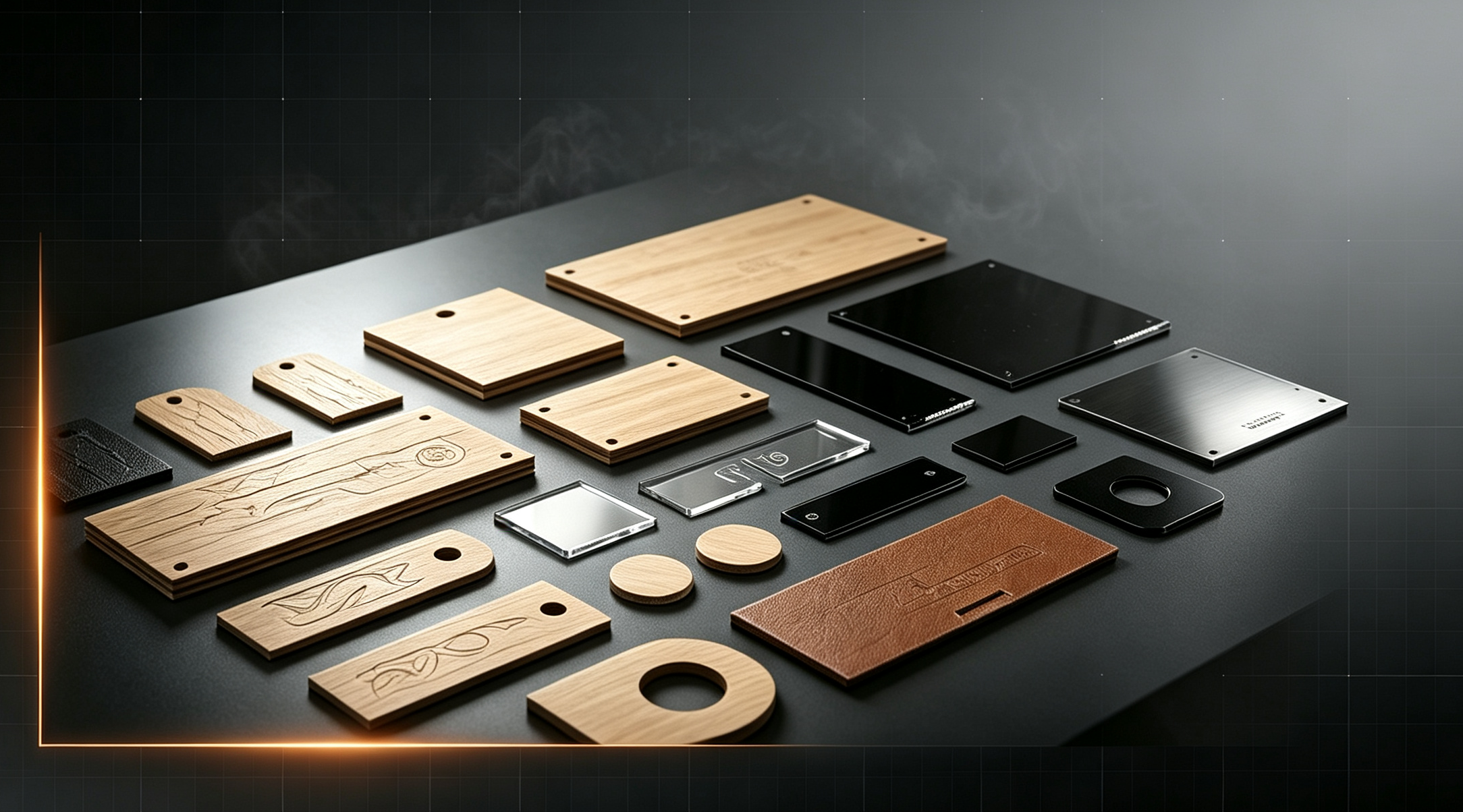

Basswood engraving and cutting result

Available functions may vary by software version, operating system, device, network environment, and workflow configuration. Confirm compatibility before production.

Models · signs · prototypes · custom parts

Technical Reference

Technical specifications.

Review machine dimensions, electrical requirements, laser-module data, software compatibility, and supported accessories.

Category Specification Value
Package information
Machine size
358 × 233 × 348 mm
Package size
395 × 285 × 450 mm
Basic parameters
Net weight
7.75 kg
Maximum engraving area
106 × 106 mm
Laser configuration
2W infrared + 10W blue diode
Input power
DC 12V / 6A
Rated power
72W
Maximum working speed
5,000 mm/s
Connection
USB / Wi-Fi / IP
Software compatibility
THMG Laser / LightBurn
Supported systems
Android / iOS / Windows / macOS
Supported files
PNG / BMP / JPG / JPEG
Wi-Fi
Supported
Focusing method
Automatic focusing
Supported workflow
Computer / mobile / offline engraving
Smoke extraction
Built-in smoke extraction inside the machine — not an external air purifier
Laser module
Rated power
72W
Laser input requirement
12V / 6A
Laser output power
2W infrared + 10W blue diode
Spot diameter
0.03 × 0.03 mm infrared / 0.06 × 0.08 mm blue
Positioning accuracy
0.001 mm
Wavelength
1064 nm + 455 nm
Scanning method
Galvanometer
Focus indication
Combined red-light and blue-light focus-point indication
Accessory support

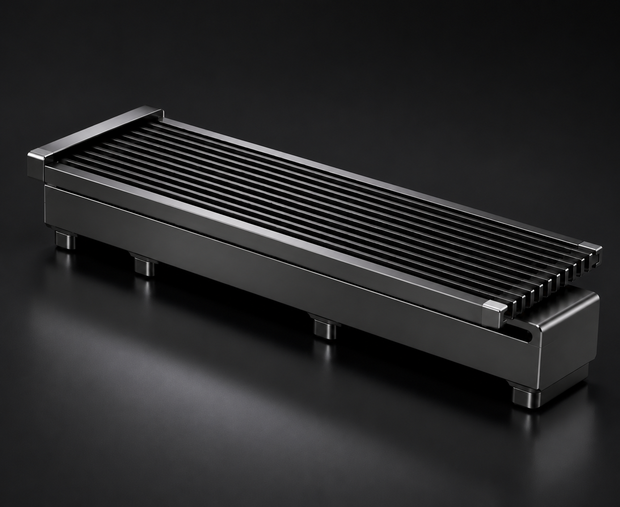

G1 Extension range
Optional accessory — supported, up to 370 × 105 mm

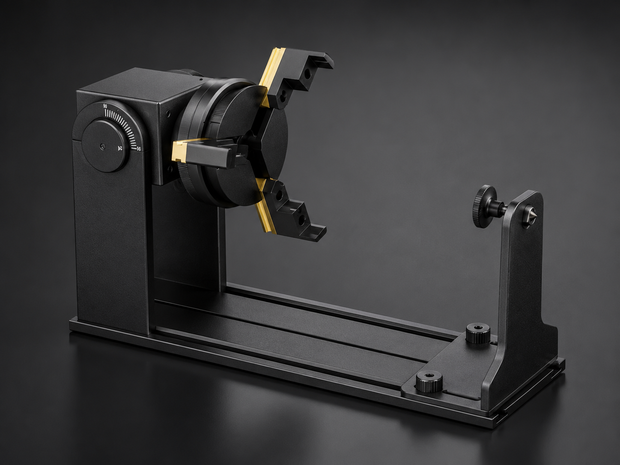

G5 Rotary chuck
Optional accessory — supported

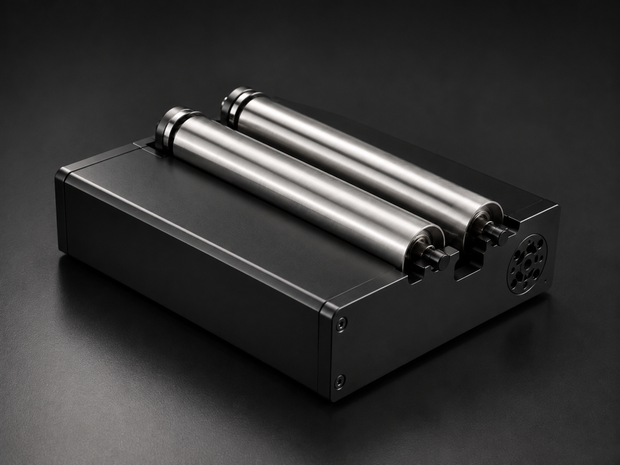

G3 Mini roller rotary
Optional accessory — supported

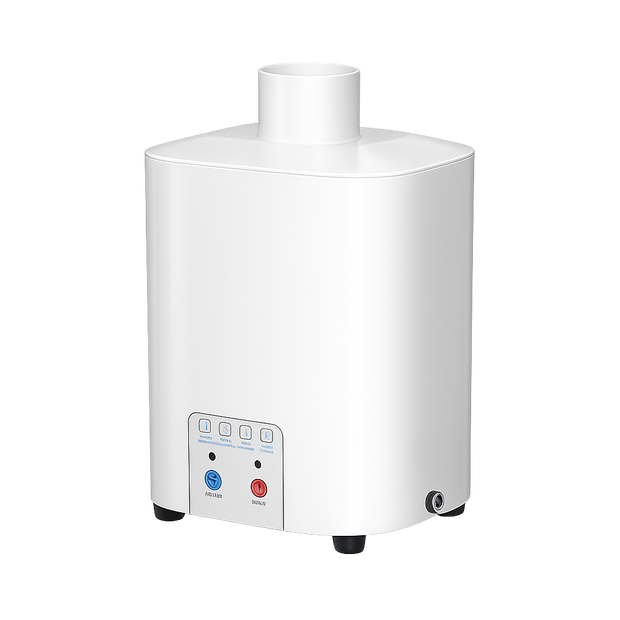

H2 external air filter
Optional external accessory — supported

Specifications combine the supplied parameter sheet with confirmed product functions. Confirm the selected configuration and optional accessories before ordering.

Before You Order

Clear answers before you choose.

Check material fit, workflow, accessories, shipping, and support before selecting your configuration.

01 What materials can the two laser sources process?

The 2W 1064 nm infrared laser is intended for metals, coated surfaces, and compatible plastics. The 10W 455 nm blue-diode laser is intended for wood, leather, paper, cardboard, dark acrylic, and other compatible non-metal materials. Test unfamiliar materials before production.

02 What is the difference between the infrared and blue lasers?

Use the 2W infrared source for fine marking on metals and compatible plastics. Use the 10W blue-diode source for engraving compatible non-metals and supported cutting work. Select the source around the material and required result.

03 What is the maximum working area?

The maximum working area for one job is 106 × 106 mm. The G1 Extension adds repositioning travel for longer workpieces and arranged layouts; it does not enlarge the machine's single marking field.

04 What is the maximum working speed?

The maximum stated working speed is 5,000 mm/s. Actual production speed depends on the material, artwork, laser source, power, focus, and required finish.

05 Does the machine support automatic focusing?

Yes. Automatic focusing helps set the working position for compatible jobs and workpiece heights.

06 Which devices and connections are supported?

The machine supports USB, Wi-Fi, and IP connections with computer and mobile workflows. Supported platforms include iOS, macOS, Windows, and Android. Confirm software and device compatibility before production.

07 Can it engrave without a continuous network connection?

Yes. Offline engraving is supported for compatible jobs after the required artwork and settings have been prepared.

08 How does smoke extraction work?

The machine has an internal built-in smoke-extraction structure. It is not an external air purifier. H2 is a separate optional external filtration accessory for additional smoke and particulate filtration.

09 How do I choose between G3 Mini, G5 Rotary, G1, and H2?

Choose G3 Mini for compatible straight cylindrical workpieces, G5 Rotary for compatible round or curved workpieces that need controlled grip, and G1 Extension for longer workpieces or arranged multi-item layouts. Add H2 only when the production environment requires external filtration.

10 What warranty and U.S. shipping support are available?

The current product listing includes a 2-year warranty and technical support. In-stock units ship from the XT LASER U.S. warehouse, and Texas warehouse pickup may be available. Stock, pickup readiness, carrier service, and delivery time must be confirmed for the selected order.

Need help choosing?

Send us your material, workpiece shape, and production goal.

Contact a laser expert
