XT LASER H-Series Enclosed Fiber Laser Marker
- Fully enclosed workstation: safer, cleaner, and more professional metal marking.
- Up to 10,000 mm/s speed: fast logos, text, QR codes, barcodes, serial numbers, and traceability marks.
- 12 μrad / 8 μrad precision: sharp edges, fine details, and consistent marking quality.
- Raycus + JCZ system: stable long-term industrial marking performance.
- Adjustable Z-axis column: supports tools, nameplates, tags, components, and small-batch production.
Couldn't load pickup availability
Pickup available at U.S. Texas Warehouse
Usually ready in 24 hoursIn-stock units ship from XT LASER's U.S. warehouse. Final delivery time depends on carrier service and the receiving address.
Each unit is inspected and test-run before shipment to help confirm stable operation, correct configuration, and safe packaging.
XT LASER provides a 2-year warranty with technical support for setup guidance, operation support, troubleshooting, and after-sales service.
Eligible orders can request price-protection review within 60 days and return support within 14 days under store policy terms.
Pairs well with
XT LASER H-Series Enclosed Fiber Laser Marker
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Ideal for high-precision laser marking across medical, electronics, automotive, R&D, and industrial applications. Produces permanent, crisp, and stable marks for reliable traceability—meeting stringent multi-industry requirements.
Industries & Applications
Precision for Every Industry.
From medical devices and electronics to automotive and R&D, create permanent, high-contrast marks built for dependable traceability.
Explore ApplicationsWorks on a Wide Range of Materials · High-Precision Results
Fully sealed enclosure: blocks dust ingress, oil mist, and moisture to protect the optical path for long-term stable operation in harsh industrial settings.
Fiber-laser marking enables high-speed processing for a major productivity lift. High positional accuracy and fine resolution create clean lines, sharp edges, and stable, repeatable print-quality detail.

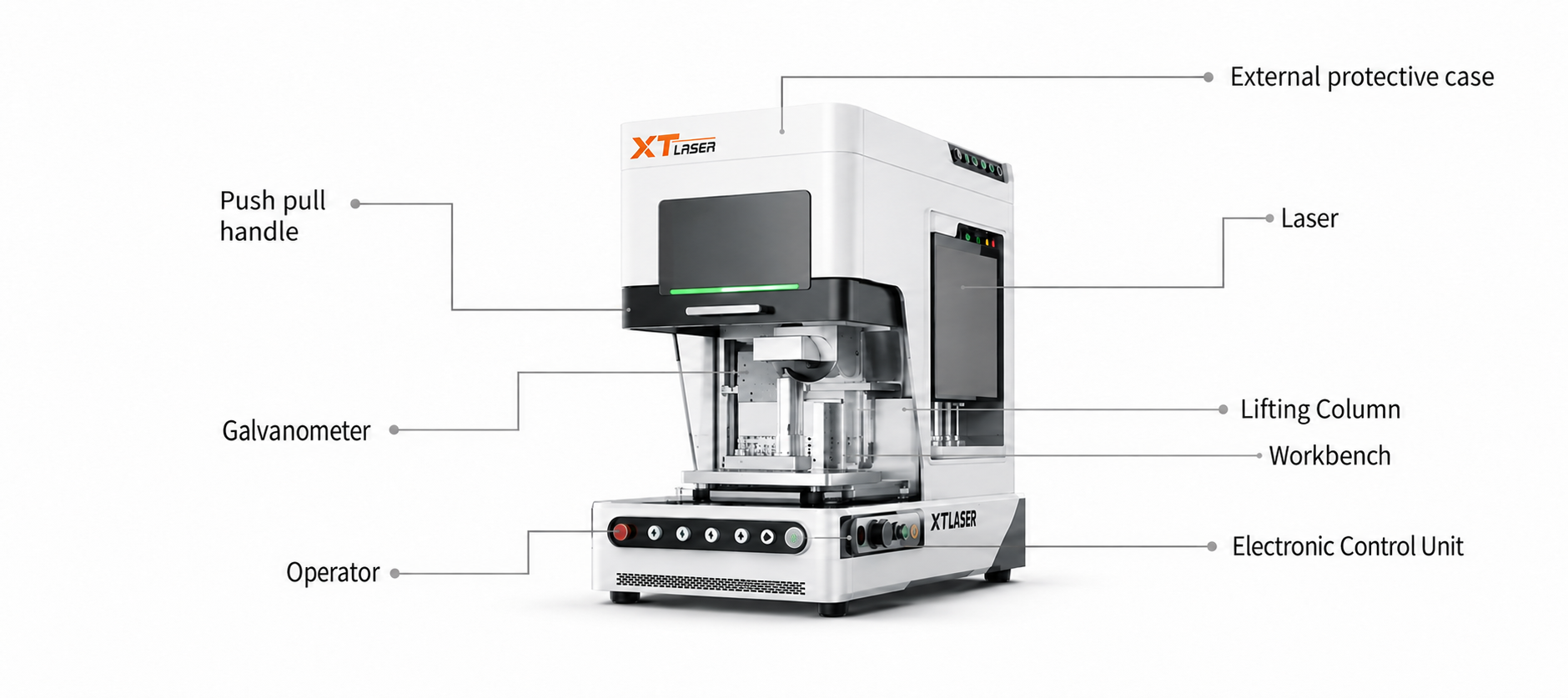

Highly integrated, all-in-one architecture in a compact, robust housing. Fast power-up and reliable continuous-duty operation help improve uptime and throughput.
Designed for long service life—up to 100,000 hours—supporting 5–10 years of operation under typical use. With substantially lower energy consumption than traditional processing equipment, it’s an ideal solution for energy-efficient, low-carbon manufacturing.
Configured for 20W
H-Series 20W Power Fit Guide
Configured for the current 20W enclosed fiber laser marker. Best for clean identification marks, fine logos, serial numbers, QR codes, labels, and small-batch metal marking work.
QR Codes & Serial Numbers
Clean readable marks for traceability, labels, nameplates, and product identification.
Logos, Text & Fine Marks
Suitable for precise surface marking on common metals and compatible coated materials.
Light Surface Engraving
Confirm material, finish, mark size, and target depth before ordering.
Deep Engraving or Production Lines
For higher depth targets or continuous production, confirm an industrial configuration first.
| Optics & Controller | Standard | Optional |
|---|---|---|
| Laser Source | Raycus | JPT/IPG |
| Galvo Scanner | SINO-GALVO SG2206 | Century Sunny S-9210D |
| Control System | JCZ LMC Lite (With Axis) | JCZ Standard Controller Card |
| Supported File Formats | AI/PLT/DXF/DST/SVG/NC/G/GBR | |
Raycus Laser Source Specifications
The Q-switched pulsed fiber laser series developed by Raycus is designed for industrial marking and micromachining. Featuring high peak power, high single-pulse energy, and selectable spot diameters, it is widely used for marking, precision processing, and graphic engraving on non-metals, high-reflective materials such as gold, silver, copper, and aluminum, as well as non-high-reflective materials like stainless steel. Compared with traditional laser sources, it offers lower process cost and more stable performance in marking applications.
SINO-GALVO Digital Fiber Galvo Scanner (SG2206)
Product Features
- ■ A differential photoelectric sensor accurately detects the motor rotor position, delivering excellent linearity, low drift, and high resolution & repeatability.
- ■ Precision load design for a 10mm mirror; high motor assembly accuracy, optimized structure, low static friction, and minimal zero offset for strong dynamic performance.
- ■ The driver includes position and speed feed-forward detection, significantly improving dynamic response and scan speed.
- ■ Overload, overcurrent, and reverse-polarity protection for more reliable operation.
- ■ EMC-optimized design with high SNR and strong anti-interference capability.
- ■ Addresses common issues such as temperature drift, signal interference, and zero drift in galvo motors.
SG2206 Performance Specifications
| Speed | |
|---|---|
| Marking speed(1) | 6000mm/s |
| Positioning speed(1) | 8000mm/s |
| Writing speed(2) | 426cps |
| Step response time (full scale 1%) | ＜400us |
| Step response time (full scale 10%) | ＜1000us |
| Tracking error | ≤164us |
| Accuracy & Error | |
|---|---|
| Linearity | 99.9% |
| Repeatability | ＜8μRad |
| Gain error | ＜5mRad |
| Zero offset (batch origin error) | ＜5mRad |
| Long-term drift (continuous operation 8 hours) | ＜0.5mRad |
| Scale drift | ＜40PPM/℃ |
| Zero drift | ＜15μRad/℃ |
| Mirror Damage Threshold | |
|---|---|
| K9 substrate | 9.1J/cm² |
| Si substrate | 10J/cm² |
| Mirror coating wavelength(3) | 1064nm |
| Power & Signal | |
|---|---|
| Input voltage | ±15VDC |
| Rated current | 2A |
| Interface protocol | XY2-100 |
| Scan angle | ±11° |
| Current, Temperature & Dimensions | |
|---|---|
| Operating temperature | 0℃~45℃ |
| Storage temperature | -10℃~60℃ |
| Laser input aperture | 10mm |
| Galvo dimensions (L×W×H) | 118.5×96.5×94.1mm |
| Galvo weight | ≈1.65Kg |
Notes: The above parameters are measured after the unit warms up for 30min.
(1) Using an F-Theta lens, focal length 160mm, marking 2mm-high single-line characters;
(2) Using an F-Theta lens, focal length 160mm, number of 1mm-high single-line characters marked per second;
(3) Custom coatings for special wavelengths are available.
JCZ LMC Lite (With Axis) + EZCAD2 Software
Key Specifications
| Feature | Specification |
|---|---|
| Connection | PCIE slot |
| Inputs | 6 channels |
| Outputs | 2-channel TTL |
| Operating system | XP/WIN7/WIN8/WIN10, 32/64-bit |
| Adjustable pulse width (M\OPA) laser | Supported |
| Built-in encryption chip | No external dongle required |
| ReMark signal | Repeat marking from buffered content |
| Applicable materials | Metals, black photosensitive materials |
| Applicable laser | Fiber laser |
| Watchdog function | Helps prevent abnormal long emission |
| Galvo control signal | Digital signal; directly compatible with widely used international digital galvos |
Typical Applications
Suitable for bracelet processing, flying marking, large-format garment engraving, multi-head processing, die-cut processing, tube processing, and more.
Software & Hardware - EZCAD2 Laser Marking Control System
| Item | Support |
|---|---|
| Software | EZCAD2 |
| Hardware | LMC series control card |
| Connection | USB/PCIE |
| Axis control | 2-axis |
| TCP/IP variable text transfer | Supported |
| REMARK | Supported |
| High-precision galvo calibration | Supported |
| Multi-document processing | Supported |
| Multi-head | Supports 8 heads |
| Flying marking | Supported |
| Camera vision | Supported |
| Secondary development | Supported |
| Dynamic focus | Not supported |
| 2.5D | Not supported |
| 3D | Not supported |
| Constant-speed marking | Not supported |
| Fast QR code | Not supported |
| Linear change of power/speed/frequency | Not supported |
| Enable arc processing | Not supported |
| Fill optimization | Not supported |
| Galvo status feedback | Not supported |
| Long-emission prevention | Not supported |
| Dual-galvo control | Not supported |
| Online firmware upgrade | Not supported |
| Galvo protocol | XY2-100 |
| Laser types | Fiber, CO2, YAG, SPI |
*Notes: ① FBLI-B-V4 and SZLI-B-V4 use EZCAD2
② Some functions are optional
Software Main Specifications
| Item | Description |
|---|---|
| Software core | 32-bit |
| Laser support | Supports CO2, YAG, FIBER, SPI, etc. Based on the laser parameters, the software can adjust current, pulse frequency, duty cycle, and more. |
| Red-light preview | Supported; red light is used as an aiming/indicator beam |
| Password control | Supported; helps prevent unauthorized parameter changes |
| IO control | Adds port control functions to enable easy automation. |
| Galvo calibration | Traditional trapezoid correction, barrel (pillow) correction, and parallelogram correction. Dedicated calibration software delivers highly accurate results. |
| Fill | Ring fill, arbitrary-angle fill, cross-hatch fill; margins, borders, and spacing adjustable. Supports 3 fill layers, each configurable independently. |
| Editing | Curve text, graphic drawing/editing, explode/combine, group/ungroup, undo/redo, weld, trim, intersect, align, auto-connect curves, and more. |
| Text input | Supports TrueType fonts, single-line fonts (JSF), dot-matrix fonts (DMF), SHX, and user-defined font libraries. |
| 256-layer process parameters | Fully customizable for easy multi-parameter marking |
| Barcodes & QR codes | Code39, EAN, PDF417, DATAMATRIX, QR, DATAMATRIX-GS1, etc. |
| Vector files | PLT, DXF, AI, DST, SVG, GBR, NC, JPC, BOT |
| Bitmap files | BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF |
| Variable text | Fixed text, date, time, keyboard input, serial increment, list files, dynamic files, supports EXCEL sheets, TXT files, serial communication, and network communication. |
| Multi-language support | Built-in Chinese, English, Korean, Japanese, French, and German. You can translate via language packs for easy localization. |
| Optional functions | Dual-axis stitching, flying marking, software secondary development |
| Laser processing plugins | Rotary angle marking, rotary angle marking 2, multi-document marking, super ruler, jewelry marking, rotary axis marking, rotary text marking, split marking 2, globe marking, multi-station processing module, ring text marking, projection marking |
JCZ-EZCAD2 Software
A proven, industry-standard suite for industrial fiber laser marking—fast to learn, feature-rich, and production-ready.
- File Compatibility: Supports vector and raster formats (PLT / DXF / AI / BMP / JPG, etc.)
- Auto Generation: One-click creation for codes, serial numbers, date/lot codes, QR codes, and barcodes
- Fine Parameter Control: Precision tuning for speed, power, frequency, focus, and more
- WYSIWYG Preview: Real-time marking preview for more intuitive setup and optimization
Safety Features
Immediate machine shutdown
Automatic beam interruption
Prevents operation when open
Eye protection from stray radiation
Complete laser containment
Removes smoke and particles
Stops operation when access is open
Meets European safety standards
High-Stability Industrial Fiber Laser Source
Built for high-repeatability marking and long-duration continuous production. Based on a proven fiber-laser architecture, it delivers stable output and long service life—ideal for permanent identification on metals and challenging materials.
- Stable Output, Long-Term Reliability Minimal power fluctuation helps maintain consistent mark depth and clarity during extended runs—ideal for continuous production and high-volume marking.
- High Beam Quality for Fine Marking Excellent beam mode (low M²) enables high-contrast, high-resolution marking for micro text, QR codes, and precision graphics.
- Ultra-Long Service Life, Low Maintenance Long-life core components and a consumable-free design significantly reduce downtime and maintenance cost—built for long-term industrial ROI.
- High Electro-Optical Efficiency Lower power consumption and reduced heat generation help cut electricity and cooling loads while maintaining output performance.
Industrial Fiber Laser Source vs. Standard Laser Source
A clearer comparison of stability, precision, and total cost over time (swipe left/right on mobile).
| Item | Industrial Fiber Laser Source | Standard Laser Source |
|---|---|---|
| Stability | ★★★★★ | ★★☆☆☆ |
| Marking Precision | ★★★★★ | ★★☆☆☆ |
| Batch Consistency | ★★★★★ | ★★☆☆☆ |
| Service Life | ★★★★★ | ★★☆☆☆ |
| Maintenance Cost | ★★★★★ Low | ★★☆☆☆ High |
| Industrial Readiness | ★★★★★ | ★★☆☆☆ |
In the Box
Product Specifications
| Item | H Model | C Model |
|---|---|---|
| Type | 2D | 2D |
| Category | Fiber | Fiber |
| Marking Area | 70-200mm | 70-200mm |
| Machine Dimensions | 750×500×885mm / 29.53×19.69×34.84in |
750×500×750mm / 29.53×19.69×29.53in |
| Machine Weight | 105KG | 100KG |
| Marking Speed | ≤10000mm/s | ≤4000mm/s |
| Total Power/Current (with 100W laser) | 980W/4.45A | 880W/4A |
| Total Power/Current (with 50W laser) | 870W/3.95A | 770W/3.5A |
| Total Power/Current (with 30W laser) | 730W/3.32A | 630W/2.86A |
| Total Power/Current (with 20W laser) | 680W/3.09A | 580W/2.64A |
| Resolution | 12μRad | 15μRad |
| Repeat Accuracy | 8μRad | 8μRad |
| Input Aperture | 10mm | 10mm |
| Cabinet Structure | Sheet metal welding | Sheet metal welding |
| Column 500mm | ● | × |
| Column 400mm | × | ● |
| Optical Path | Plastic molded optical path | Plastic molded optical path |
| Limit Strip | ● | ● |
| Worktable Surface (2-axis table) | ○ | ○ |
| Worktable Surface (Aluminum plate) | ● | ● |
| Switching Power Supply | Hengfu | Xintian |
| Circuit Breaker | CHINT | CHINT |
| Portable Computer | Xintian H Model | Xintian C Model |
| Filter | ● | ● |
| Intermediate Relay | ● | × |
| Stepper Motor Controller | ● | × |
| Lighting | ● | ● |
| Stepper Motor Driver | ● | ● |
| Limit Switch | ● | ● |
| Foot Pedal | ● | ● |
| Terminal | ● | ● |
| Laser |
●Raycus
○JPT/IPG
|
●Raycus
○JPT/IPG
|
| Galvo |
●Jinhaichuang (SG2206)
○Century Sunny (S-9210D)
|
●Shengketai
○Jinhaichuang (RC7110A)
|
| Field Lens | Wavelength (70-200 area) / Non-wavelength for other areas |
Non-wavelength |
| Beam Combiner | Wavelength | Non-wavelength |
| Red Light | ● | ● |
| Control System |
●JCZ Lite Card (with axis)
○JCZ Standard Controller Card
|
●JCZ Lite Card (no axis)
○JCZ Lite Card (with axis)
○JCZ Standard Controller Card
|
| Supported File Formats | .AI, .PLT, .DXF, .DST, .SVG, .NC, .G, .GBR |
.AI, .PLT, .DXF, .DST, .SVG, .NC, .G, .GBR |
| Air Cooling System | ● | ● |
| Laser Abnormal Alarm | ● | ● |
| Laser Safety Label | ● | ● |
| Laser Safety Goggles | ● | ● |
| External Red Light | ● | ○ |
| Customer Wrench | ● | ○ |
| Dimming Film | ● | ○ |
| Ruler | ● | ○ |
| Rotary Axis | ○ | ○ |
| Transformer | ○ | ○ |
| Exhaust System | ○ | ○ |
FAQ
Questions Before You Order
Clear answers about power options, setup, materials, shipping, warranty, and support before you choose your configuration.
What materials can this H-Series enclosed fiber laser marker mark?
This H-Series enclosed fiber laser marker is designed for permanent marking on common metals and selected industrial materials, including stainless steel, carbon steel, aluminum, brass, copper, titanium, coated metal parts, tools, nameplates, tags, and compatible engineering plastics. Actual marking results depend on material surface, coating, focus, lens field size, and laser parameters.
What power configuration does this page include?
This product page is configured for the 20W H-Series model. Higher-power configurations or custom setups should be confirmed with XT LASER before purchase.
What is the marking speed and precision?
The H-Series supports marking speeds up to 10,000 mm/s, with 12 μrad resolution and 8 μrad repeatability for sharp edges, fine details, QR codes, barcodes, serial numbers, logos, and traceability marks.
Why choose a fully enclosed marker?
The fully enclosed workstation helps create a cleaner and safer marking environment by reducing exposure to marking light, smoke, particles, and outside dust. It is better suited for professional workshops, production rooms, and controlled industrial workspaces than open-frame marking systems.
What software and control system does it use?
The H-Series uses a Raycus fiber laser source with a JCZ control system and EZCAD-based marking workflow. It supports common marking files and production tasks such as text, logos, serial numbers, QR codes, barcodes, date codes, and batch identification.
What applications is this machine best for?
It is suitable for metal part marking, tool marking, nameplates, tags, electronic components, automotive parts, medical device identification, industrial traceability, product branding, QR codes, barcodes, and small-batch production marking.
Can it mark curved parts or cylindrical items?
Flat parts can be marked with the standard setup. Cylindrical or curved parts may require a rotary axis or fixture. Please confirm your workpiece size, material, and marking area with XT LASER before ordering accessories.
What warranty and support are included?
XT LASER provides a 2-year warranty and technical support for setup guidance, operation support, troubleshooting, and after-sales service. Support availability and service method may vary depending on order status, location, and product condition.
What should I confirm before ordering?
Please confirm your material type, marking content, required marking area, expected depth or contrast, workpiece size, fixture needs, software workflow, delivery address, and whether you need rotary or exhaust accessories. XT LASER can help verify the correct setup before purchase.
Need help choosing the right setup?
Send us your material, thickness, application, and delivery address. XT LASER will help confirm the right configuration.
